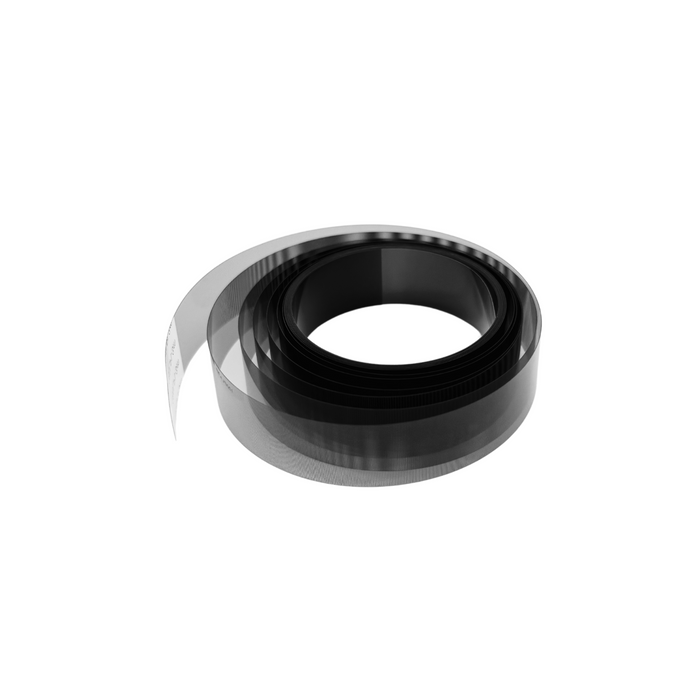

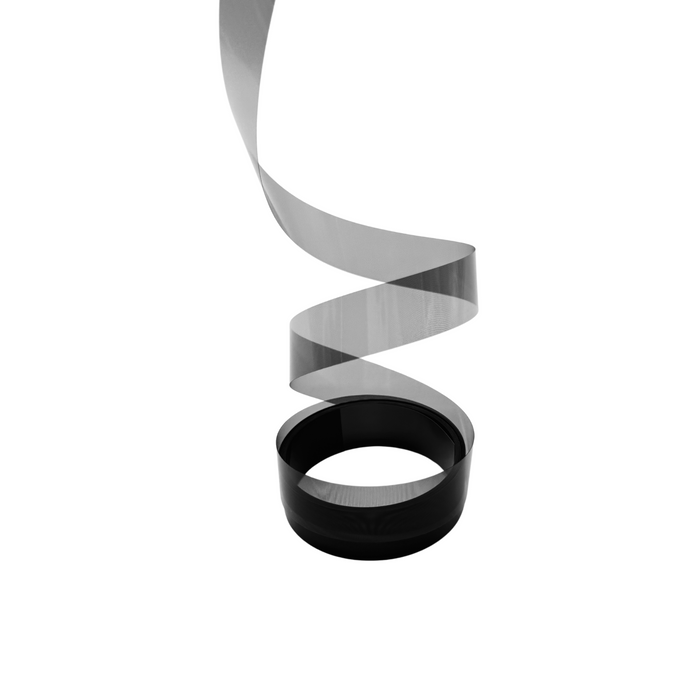

Encoder Strip

Encoder Strip is a replacement positioning component intended for compatible DTF printer motion systems. It is used as part of the printer's carriage-positioning and movement-control setup.

Encoder strips can vary by length, width, printed markings, mounting position, and printer design. Compare the existing strip and printer configuration carefully before selecting a replacement.

Product Details

• Product Type: Encoder Strip
• Application: Compatible DTF printer positioning systems
• Use: Replacement carriage-positioning component

What Does an Encoder Strip Do?

An encoder strip provides position-reference information within a compatible printer motion system. The printer's sensing system reads the strip as the carriage moves across the print area.

The exact function and installation position depend on the printer's carriage and control-system design, so the strip should not be treated as a universal replacement part.

For DTF Printer Motion-System Maintenance

An encoder strip may require replacement if the existing component is damaged, contaminated, worn, or being serviced as part of printer maintenance.

Browse additional repair and replacement components in our DTF Printer Parts collection.

Check the Positioning System

Printer positioning systems can include multiple sensing and motion-control components. Confirm which part requires replacement before changing components.

For another sensor-related component listed in the current catalog, see our Photoelectric Switch Sensor - E18-D30NA.

Check Compatibility Before Installation

Confirm the strip dimensions, printed markings, mounting points, orientation, and printer configuration before installation.

Handle the strip carefully during service and follow the printer manufacturer's maintenance procedure. If the original part specifications cannot be confirmed, verify compatibility before installation.

Frequently Asked Questions

What is an Encoder Strip used for?
It is used as part of a compatible printer's carriage-positioning and movement-control system.

Can it be used with every DTF printer?
No universal compatibility should be assumed. Encoder strips can differ in dimensions, markings, mounting, and printer-specific requirements.

Are the strip dimensions confirmed?
No. The current verified source does not provide length, width, or marking-spacing specifications.

Should the encoder strip be handled carefully?
Yes. It is part of the printer's positioning system, so installation and service should follow the applicable printer maintenance procedure.
