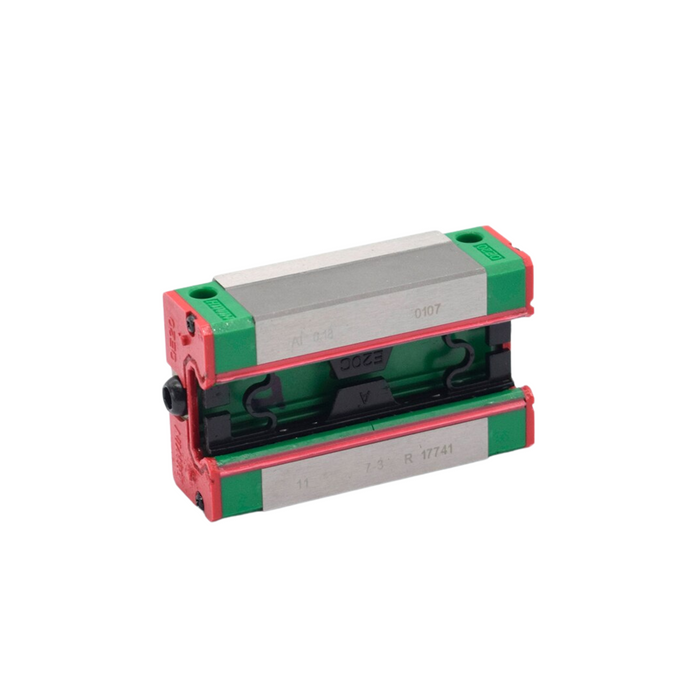

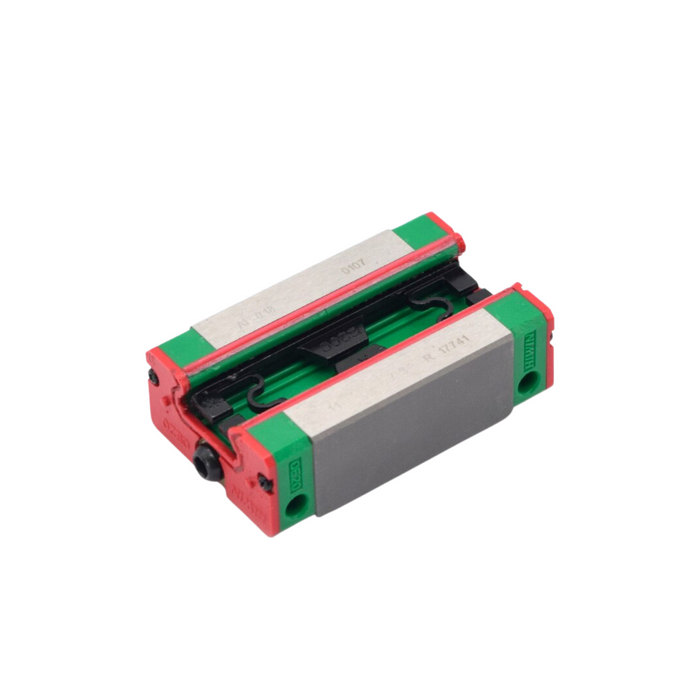

Linear Guide Rail
Linear Guide Rail
Linear Guide Rail is a replacement mechanical component intended for compatible printing equipment that uses a matching linear motion rail configuration.
Linear guide rails can vary by length, profile dimensions, mounting-hole pattern, carriage compatibility, material, and machine design. Compare the existing rail and equipment setup carefully before ordering or installation.
Product Details
- Product Type: Linear Guide Rail
- Application: Compatible printing equipment
- Use: Replacement linear motion component
For Compatible Linear Motion Systems
A linear guide rail can form part of a compatible printer's carriage or motion system, depending on the equipment design.
The exact position, dimensions, mounting arrangement, and matching carriage requirements depend on the machine configuration, so this product should not be treated as a universal replacement rail.
Check the Existing Rail Before Ordering
Guide rails with a similar appearance can still differ in overall length, profile size, mounting-hole spacing, carriage compatibility, and intended equipment application.
If you are unsure whether this Linear Guide Rail is appropriate for your equipment, contact us with your printer model and clear photos of the existing rail, mounting points, carriage area, and identifying information before ordering.
Browse Related Printer Parts
For additional verified replacement components, browse our Parts & Accessories collection.
Installation and Alignment
Disconnect the equipment from power before servicing mechanical or motion-related components. Confirm the rail position, mounting alignment, carriage fit, and surrounding parts before installation.
Do not force a carriage or mounting hardware onto a rail that does not match the equipment requirements.
Frequently Asked Questions
What is this product?
This product is identified in the current Eagle DTF Supply catalog as a Linear Guide Rail.
Does it fit every DTF printer?
Universal compatibility should not be assumed. Confirm the rail dimensions, mounting pattern, carriage fit, and printer requirements before ordering.
Are the rail dimensions confirmed?
No. The current verified Eagle DTF Supply source does not provide confirmed length, width, or profile specifications.
Is the matching carriage or block type confirmed?
No. The current verified source does not provide a confirmed carriage or linear-block specification.
What should I do if I am unsure about compatibility?
Contact us with your printer model and clear photos of the existing rail, carriage area, and mounting points before ordering.
